Products introduction | |
 |  |

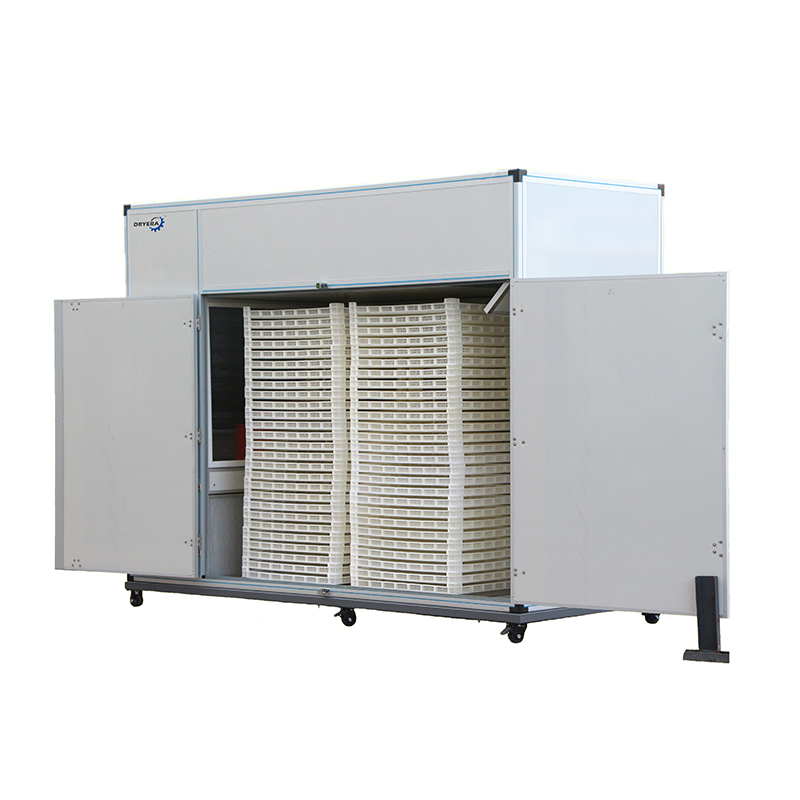

This dehydrator machine mainly for the medium capacity, from 300kg to 700kg optional.
It is all in one unit, no need installation. Once you receive the machine, connect the power, put the products in the machine, set the drying parameters, then the machine will dry the products automatically. Very easy to use, no need staff to stand by 24 hours.
Specification | |||
| Model | DTC-07SB | DTC-07DB | |
| Temp. Control | ℃ | 18~75 | 18~75 |
| Dehumi. Capacity | L/h | 20 | 20 |
| Functions | Heat dry, Cool dry, Dehumidify | Heat dry, Cool dry, Dehumidify | |
| Trays Quantites | PCS | 32-56 | 64-112 |
| Trays Size | mm | 800*600 | 800*600 |
| Drying Cabinet Size | mm | 1200*1200*1400 | 2200*1200*1400 |
| Performance | |||
| Rated Power Input | kW | 10.6 | 10.6 |
| Rated Current Input | A | 17.9 | 17.9 |
| Voltage/Frequency | V,HZ | 380V/50HZ/60Hz | 380V/50HZ/60Hz |
| Emergency Auxiliary Heating Power Input | kW | 9 | 9 |
| Refrigerant Type | R134a | R134a | |
| Weight and packing | |||
| Operation ambient Temp. | ℃ | -5-50 | -5-50 |
| Weight | kg | 650 | 1000 |
| Machine Dimension(L*W*H) | mm | 1950*1310*2250 | 2950*1310*2250 |
Why heat pump dehydrator? |
Heat pump technology provide control of temperature, humidity, and dwell time to dry the products, it saves the energy consumption up to 75%.
Our heat pump dryer temperature variable from 18 °C to 80 °C. Temperatures up to 100 °C may be selected. Using low temperatures is a gentle way of drying your food. Drying is absolutely stress-free for your product. Then the products can maintain quality characteristics such as color, texture, nutrients, and essential ingredients.
Bellowing is the electricity consumption in different dryers:
| Heating method | Electric heater | Coal boiler | Coal-fired boiler | Natural gas boiler | Nomal HPD | Our HPD |
| Calories required to remove 1kg of water | According to relevant authoritative information, the average heat required to remove 1kg of water is 1.35kw/kg, or 1161kcal/kg | |||||
| Fuel type | Electricity | Coal | Diesel fuel | Natural gas | Electricity | Electricity |
| Burning value | 860kcal/kwh | 5500kcal/kg | 8000kcal/L | 8600kcal/m3 | 860kcal/kwh | 860kcal/kwh |
| Thermal efficiency | 95% | 30% | 85% | 85% | 300% | 500% |
| Effective calorific value | 817kcal | 1650kcal | 6800kcal | 7310kcal | 2580kcal | 4300kcal |
| unit price of fuel | 0.6yuan/kwh | 1yuan/kg | 7.4yuan/L | 5yuan/m3 | 0.6yuan/kwh | 0.6yuan/kwh |
| consume fuel | 0.852kwh | 0.7kg | 0.17L | 0.159m3 | 0.27kwh | 0.162kwh |
| running cost | 0.852 | 0.7 | 1.26 | 0.795 | 0.27 | 0.162 |
| labor cost | Meddium | High | High | High | Meddium | Low |
| Safety performance | Not safe | Not safe | Not safe | Not safe | Not safe | Safe |
| Environmental pollution | No | very serious | quite serious | quite serious | No | No |
| Equipment service life | 5-8 years | 6-9years | 6-9years | 6-9years | 6-10years | 10-15years |
Our heat pump dehydrator is the best energy saving!
Products Details |
Drying trays with SS304 material or food grade plastic optional
Polyurethane isolation board optional with SS304 or coated steel
Machine body material optional with coated steel or stainless steel
Digital PLC control board easy to set your parameters like drying temperature, humidity and drying time etc.
Smart module control system, automatic regulation and a 24 - hour unattended operation.
Parts detail |
|  |
| Patented negative pressure fan design, the products can be dried 100% evenly | International top compress brand Copeland from Emerson company |
No need tools to open the panel and check each parts if need any inspect or repair
APPLICATION |
flowers drying |
meat drying |
seafood dehydrating |
pet food dehydrating |
green leaves dehydrating |
fish dehydrating |
shrimp dehydrating |
beef jerky drying |
Other products dehydrating |
