Products introduction | |
 |  |

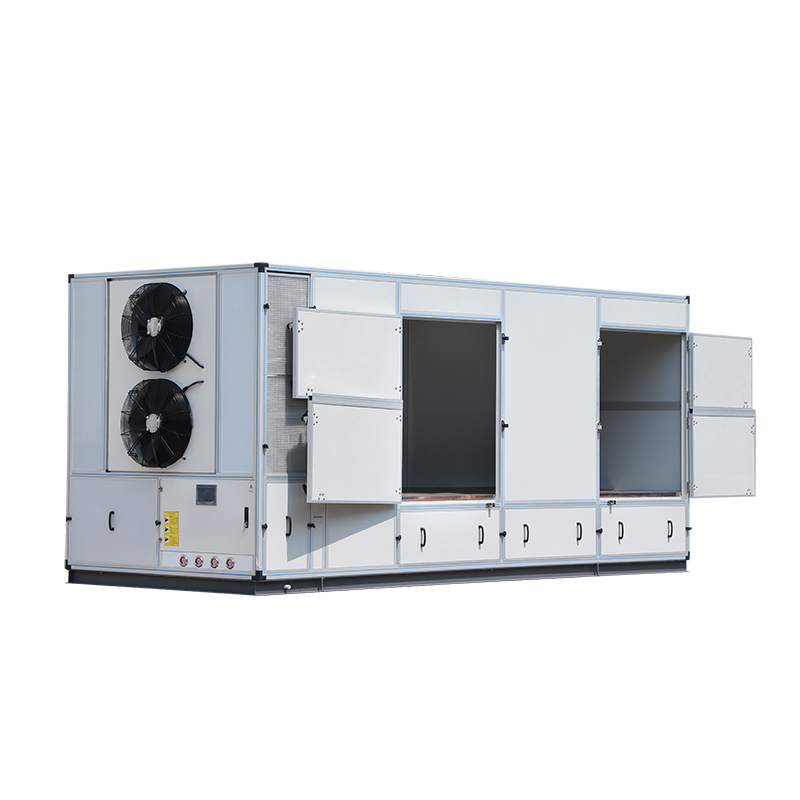

This dehydrator machine with different size, from small to large capacity optional.
It is all in one unit, no need installation. The machine can perfectly match with the shipping containers size, once you receive the machine, connect the power, load the material, set the drying process on the PLC is ok to operation. Totally automatic and 24 hours unattended operation.
Specification | ||||
| Model | DPR-15 | DPR-25 | DPR-36 | |
| Temp. Control | ℃ | 18~75 | 18~75 | 18~75 |
| Dehumi. Capacity | L/h | 35~45 | 45~60 | 15-20 |
| Functions | Heat dry, Cool dry, Dehumidify | Heat dry, Cool dry, Dehumidify | Heat dry, Cool dry, Dehumidify | |
| Performance | ||||
| Rated Power Input | kW | 18.8 | 29.4 | 41.5 |
| Rated Current Input | A | 37.3 | 58.4 | 78.8 |
| Voltage/Frequency | V,HZ | 380V/50HZ/60Hz | 380V/50HZ/60Hz | 380V/50HZ/60Hz |
| Emergency Auxiliary Heating Power Input | kW | 18 | 30 | 30 |
| Refrigerant Type | R134a | R134a | R134a | |
| Weight and packing | ||||
| Operation ambient Temp. | ℃ | -5-50 | -5-50 | -5-50 |
| Weight | kg | 950 | 1200 | 1500 |
| Machine Dimension(L*W*H) | mm | 1610*1950*2280 | 2000*1950*2480 | 2700*1950*2480 |
Why dryeraheat pump dryer? |
 |  |
| Use heat pump technology which can saves 75% electricity | The material can stack in the machine, easy to load and unload the products |
 |  |
| Compact size, save the space a lot and can load more products | Panted negative fan design, even on the top with strong wind, products can be dried 100% evenly |
Products Details |
 |  |  |  |
| Digital PLC control board easy to set your parameters like drying temperature, humidity and drying time etc. | Modular Design System. Tools free to open the drying machine and inspect each parts for maintenance | Stack the products on the mesh plate is ok. Hot air will go penetrate from bottom to top and dry the products. Saves a lot of labor to load and unload the products. | |
APPLICABLE MATERIALS |
Peanuts drying |
Pistachio drying |
Walnuts drying |  Nuts drying |
 Spices drying |  Pepper drying |  Cardamom drying |  Garlic drying |
 Seeds drying |  Cocoa beans drying |  Coffee beans drying |  Other products drying |
